IP Power SE Standard UPS Centralized Monitoring Network Management

·Application Fields

        It applies with remote network UPS power supply equipped with Netmate II / Netmate II EXT / Netmate SE / Netmate II mini / Sitemate ,UPS battery pack and the surrounding environment conditions of the network centralized monitoring and management.

·Features

■Support multi-brand multi-UPS centralized monitoring and management

        Maintenance, monitoring and management of the wide distributed UPS power supply and its surrounding environment become very easy and efficient. A variety of UPS brands and models can be monitored at the unified platform, making the management simple and convenient;
■It can centralized manage less than 100 units of UPS integrated network nodes. Back-management of software supports centralized monitoring of less than100 network UPS nodes and using the optimized structure of the monitoring;
■Support all-day real-time UPS monitoring and management

        It supports 365 days × 24-hour real-time continuous monitoring. UPS operating conditions is easy to master and the quality and efficiency of the management is greatly enhanced;

■Real-time detection of each network UPS’s main power, battery, inverter work, bypass, self-test and other working conditions;

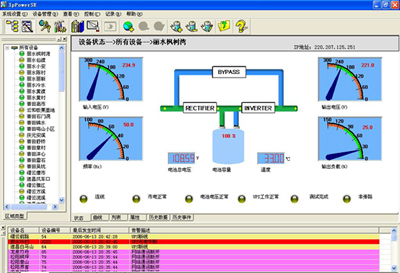

■Display detailed and intuitive data and real-time image of UPS status, data and graphically intuitive and clearly shows each network UPS’s voltage, frequency, load, battery and other parameters of the real-time status information to help users understand the current situation of electricity supply quality;

■Capable of remote control and maintenance of UPS power, and can set its regular automatic control, maintenance, preservation, such as the battery discharges and other conditions when there is no need for users to visit on-site, which means you can conduct regular operation and maintenance of the remote UPS, which greatly reduce the difficulty of the UPS management work, enhance the work efficiency, making the management of the UPS greatly improved and let the UPS battery acquire better maintenance and extend the battery life. Also, all control actions of the users have been logged and it is easy to manage and trace;
■Real-time response to UPS's alarm information. If any UPS failure and alarm, you can immediately notice in the first time through a variety of ways, the alarm response time is less than 5 seconds:
1)Pop-up warning message box to nofity the users and the administrator about the changes of UPS and its malfunction;

2)Play multimedia voice to notify the user and system administrator about the changes of UPS status and malfunction;
3)Support setting times or gaps to repeatedly play the multimedia voice alarm until the alarm is canceled;
4)It can send NT Messenger broadcast message and send the UPS status changes and fault alarm to the LAN to every Windows computer which has the NT Messenger broadcast service;
5)Automatically send alarm E-mail to the specified e-mail address;
6)Automatically send alarm information to the designated pagers via Modem;
7)Automatically send alarm information to the designated mobile phone via the user network messaging platform, MobilCenter network or GSM Modem SMS server;
8)Powerful alarm management features allow users to send the alarm message to multiple managers simultaneously;
■Management a large number of network UPS within the group according to different zones;
■Various historical events and historical data of each parameter of the UPS can be recorded for any query and analysis of power problems, which can let the user or system administrator grasp the power supply environment condition and UPS working trend, so that the power supply strategies can be rationally planned and prevent the power supply disaster in time;

■It has the computer load crisis protection, which can safely log out and close the relevant computer load when some UPS is shut down or has some malfunction, so that to protect the computer data from the damage of the power supply malfunction;

■It has the system input and output function and can protect the data of the mornitoring system;

■The system can run automatically and realize fully automatic monitoring and managing the UPS

Operating in the backstage service method and the program can be started before the user log in, thus to realize no staff intervention and automatic monitoring and managing the UPS;
■Support most of the brands and models of single-phase / three-phase UPS of the market;
■It can monitor the temperature and humidity of the environment of the UPS room and keep abreast of the remote computer room environment. Prevent the damage and destruction of abnormal temperature and humidity on the UPS, storage batteries and other network equipments;
■It can simultaneously monitor the battery power of UPS battery, fully grasp the battery energy storage situation, the discharge duration and volume attenuation;
■It can simultaneously monitor the water leakage of the surrounding environment, and for some special rooms, we need to grasp the water leakage condition at any moment to avoid serious accidents caused by abnormal leakage;
■It can simultaneously monitor the entrance guard situation of the UPS room to prevent accidents caused by illegal entry of non-professionals;

■Support Chinese / English display. It has a friendly and intuitive interface and easy to install and use.

·Compatible of the following operating systems:

MS-Windows® 98,MS- Windows® Me,MS-Windows® NT,MS-Windows® 2000,MS-Windows® XP,MS-Windows® 2003, MS-WindowsVista.

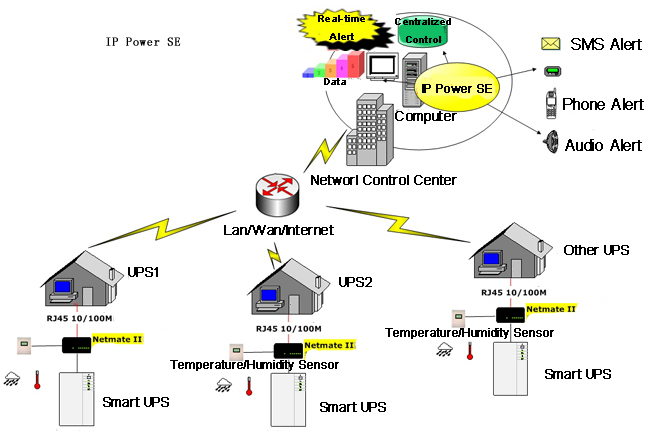

·Schematic Diagram of one of the typical application solutions:
